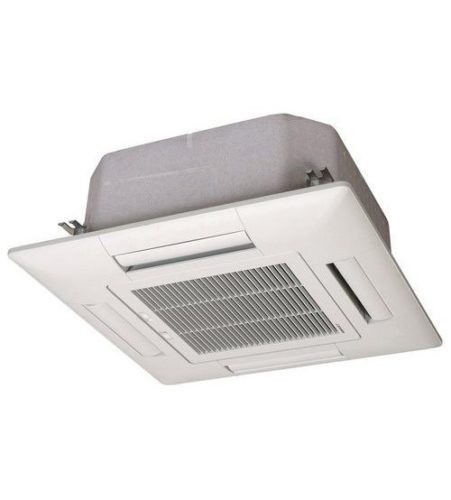

Mitsubishi Heavy FDT100CR-S 3 Ton Cassette AC (Scroll-3PH/415V) R410A

Availability:

11 in stock


135990 1354990

11 in stock

EASY EMI OPTION

6 MONTH EMI OPTION
9 MONTH EMI OPTION
12 MONTH EMI OPTION
24 MONTH EMI OPTION

CLICK HERE FOR FINANCE

Weight 11 kg
Dimensions 11 × 11 × 11 cm

Product Specification

Refrigerant R410A
Brand Mitsubishi
Condition New
Type Cassette AC
Unit Model FDT100CR-S
Indoor Unit Model FDT100CR-S
Outdoor Unit Model FDC100CR-S
Super Tropical Return Cooled Compressor Scroll
Type of AC Heavy Duty AC
Power Source 3 Phase, 380 ~ 440 V, 50Hz
Maximum Cooling Capacity 3.0 Ton
Maximum Cooling Capacity In Watts 10550 Watts
Maximum Cooling Capacity In BTU Per h 36000 BTU/h
Maximum EER Per COP 3.51 W / w
Rated Cooling Capacity 3.0 Ton
Rated Cooling Capacity In Watts 10000 Watts
Rated Cooling Capacity BTU Per h 34120 BTU/h
Input Power 2700 ~ 3000 Watts (Minimum ~ Maximum)
Rated EER Per COP 3.33 W / w
Indoor Unit Air Flow 2220 CMH
Indoor Unit Long reach AirFlow Upto 17 Feet
Indoor Unit Sound level 45 / 37 / 34 dB (H/M/l0)
Indoor Unit Filter Anti – Bacterial
Indoor Unit Fan Supper Turbo Fan
Indoor Unit DC Fan Motor Speed Auto / High / Medium / Low / Dry
Indoor Unit Refrigerant Injection in Coil 6 Point – Multi Port
Indoor Unit Dimension 280 x 1370 x 740 mm
Outdoor Unit Dimension Unit : 298 x 840 x 840 mm , Panel : 35 x 950 x 950 mm
Indoor Unit Weight 32.5 Kgs Unit : 27 Kgs, Panel : 5.5 Kgs
Outdoor Unit Weight 64 Kgs
Refrigerant Piping for Liquid And Gas 9.52 mm (3/8″) / 15.88 mm (5/8″)
Maximum Piping Length 50 mtrs 164 feet
Outdoor Unit Vertical Height Difference Outdoor – Higher =30 mtrs / Lower = 15 mtrs
Outdoor Unit Main Power Supply to 4 mm2 x 4 cores (Including earthing)
Connecting wiring 1.5 mm2 x 4 cores (Including earthing) B/w IDU & ODU
Area Coverage 275 ~ 350 Sq.Feet
